Reuse Fiatlight widgets

Fiatlight widgets can be reused in your own applications created with Dear ImGui Bundle, not only in Fiatlight’s functions graphs.

To achieve this, you can use the fl.immediate_edit function, which is a simple way to create a GUI for editing a single value: it returns a tuple (changed, new_value) where changed is a boolean indicating whether the value was changed by the user, and new_value is the new value.

Reuse a Pydantic model GUI in a standalone application

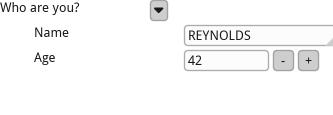

In the example below, we use the fl.immediate_edit function to create a simple GUI for editing a Pydantic model.

Since the model has a validator fl.immediate_edit will only return the new value if the validator passes, otherwise the user may continue to edit the value until it is valid.

See also: complete doc for pydantic and dataclasses GUI generation

import fiatlight as fl
from pydantic import BaseModel
from imgui_bundle import hello_imgui

def all_caps_validator(value: str) -> str:
    if value != value.upper():
        raise ValueError("Name must be in all caps")
    return value

@fl.base_model_with_gui_registration(
    name__label="Name",
    age__label="Age",
    name__validator=all_caps_validator,
)
class MyModel(BaseModel):
    name: str = "REYNOLDS"
    age: int = 42

MY_MODEL = MyModel()

def gui():
    global MY_MODEL
    _changed, MY_MODEL = fl.immediate_edit("Who are you?", MY_MODEL)

hello_imgui.run(gui)

Reuse a basic widget in a standalone application

In the example below, we use the fl.immediate_edit function to create a simple GUI for editing an integer and a float value.

We use fiat_attributes to customize the widgets.

from imgui_bundle import hello_imgui
import fiatlight as fl

INT_VALUE = 42
FLOAT_VALUE = 12.0

def gui():
    global INT_VALUE, FLOAT_VALUE, NAME, COMMENT

    # Edit a simple value using fiatlight (here we edit an int)
    _changed, INT_VALUE = fl.immediate_edit(
        "Value",
        INT_VALUE,
        edit_type="slider",
        slider_logarithmic=True,
        tooltip= "Enter value",
        range=(1, 1000_000_000),
    )

    _, FLOAT_VALUE = fl.immediate_edit(
        "Value2",  # Error: same label used twice (Fiatlight should raise an understandable error)
        FLOAT_VALUE,
        edit_type="knob",
        knob_steps=10,
        range=(0, 100),
        knob_size_em=5
    )

hello_imgui.run(gui)
