fiat_matplotlib: display matplotlib figures

Fiatlight provides FigureWithGui, a viewer for Matplotlib figures.

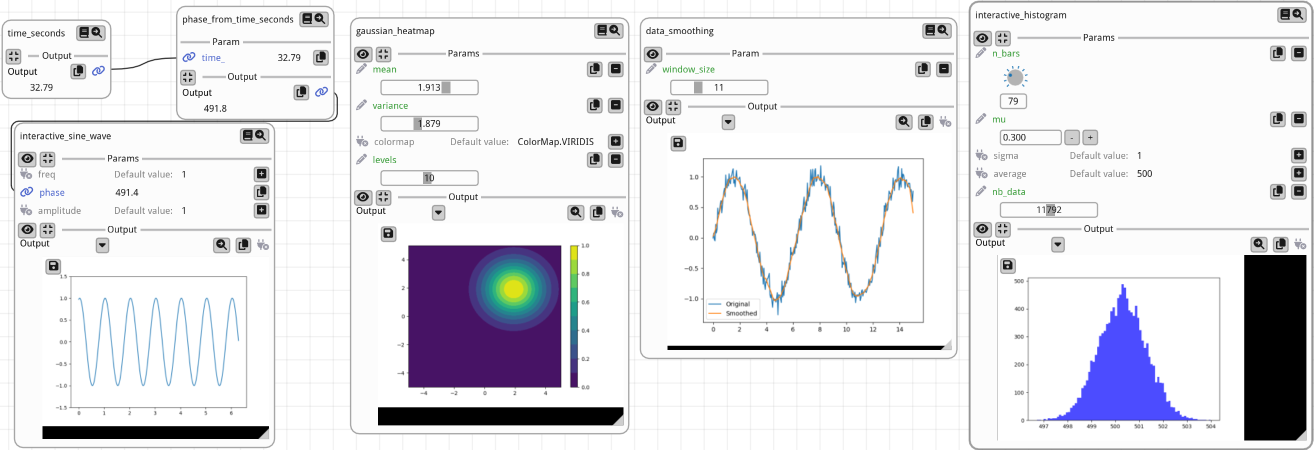

Example

from fiatlight.fiat_kits.fiat_matplotlib import demo_matplotlib

demo_matplotlib.main()

Fiat attributes available for the FigureWithGui widget

The FigureWithGui widget is not customizable. However, it can be zoomed by the user and this setting will be saved.

Source code for the example

import fiatlight
from fiatlight.fiat_notebook import look_at_code  # noqa
%look_at_python_file fiat_kits/fiat_matplotlib/demo_matplotlib.py

"""Interactive Matplotlib Figures with Fiatlight

This example demonstrates several types of matplotlib figures rendered within Fiatlight with interactive GUI elements, including a sine wave plot, a Gaussian heatmap, data smoothing, and a histogram.
"""

import matplotlib.pyplot as plt
from matplotlib.figure import Figure
import numpy as np
from enum import Enum
import time
import fiatlight as fl


# Initialize the start time
_start_time = time.time()


def time_seconds() -> float:
    """Returns the time elapsed since the start of the application."""
    return time.time() - _start_time


def phase_from_time_seconds(time_: float) -> float:
    """Calculates the phase from the given time."""
    return time_ * 15.0


# Set the function to always update
time_seconds.invoke_always_dirty = True  # type: ignore


def interactive_sine_wave(freq: float = 1.0, phase: float = 0.0, amplitude: float = 1.0) -> Figure:
    """Generates an interactive sine wave with adjustable frequency, phase, and amplitude."""
    x = np.linspace(0, 2 * np.pi, 3000)
    y = amplitude * np.sin(2 * np.pi * freq * x + phase)
    fig, ax = plt.subplots()
    ax.plot(x, y)
    ax.set_ylim([-1.5, 1.5])  # Adjust the y-axis limits
    return fig


# Set ranges and edit types for the sine wave parameters
fl.add_fiat_attributes(
    interactive_sine_wave,
    freq__range=(0.1, 3),
    phase__range=(-np.pi, np.pi),
    amplitude__range=(0.1, 2),
    freq__edit_type="knob",
    phase__edit_type="knob",
    amplitude__edit_type="knob",
)


class ColorMap(Enum):
    VIRIDIS = "viridis"
    PLASMA = "plasma"
    INFERNO = "inferno"
    MAGMA = "magma"
    CIVIDIS = "cividis"


@fl.with_fiat_attributes(
    mean__range=(-5, 5),
    variance__range=(0.1, 5),
    levels__range=(1, 20),
)
def gaussian_heatmap(
    mean: float = 0, variance: float = 1, colormap: ColorMap = ColorMap.VIRIDIS, levels: int = 10
) -> Figure:
    """Generates a Gaussian heatmap with adjustable mean, variance, colormap, and number of contour levels."""
    x = y = np.linspace(-5, 5, 100)
    X, Y = np.meshgrid(x, y)
    Z = np.exp(-((X - mean) ** 2 + (Y - mean) ** 2) / (2 * variance))
    fig, ax = plt.subplots()
    contour = ax.contourf(X, Y, Z, levels, cmap=colormap.value)
    fig.colorbar(contour, ax=ax)
    return fig


@fl.with_fiat_attributes(window_size__range=(1, 40))
def data_smoothing(window_size: int = 5) -> Figure:
    """Demonstrates data smoothing using a moving average filter."""
    x = np.linspace(0, 15, 300)
    y = np.sin(x) + np.random.normal(0, 0.1, 300)  # Noisy sine wave
    y_smooth = np.convolve(y, np.ones(window_size) / window_size, mode="same")
    fig, ax = plt.subplots()
    ax.plot(x, y, label="Original")
    ax.plot(x, y_smooth, label="Smoothed")
    ax.legend()
    return fig


def interactive_histogram(
    n_bars: int = 10, mu: float = 0, sigma: float = 1, average: float = 500, nb_data: int = 1000
) -> Figure:
    """Generates an interactive histogram with adjustable number of bars, mean, and standard deviation."""
    data = np.random.normal(mu, sigma, int(nb_data)) + average
    bins = np.linspace(np.min(data), np.max(data), n_bars)
    fig, ax = plt.subplots()
    ax.hist(data, bins=bins, color="blue", alpha=0.7)
    return fig


# Set interactive parameters for the histogram
fl.add_fiat_attributes(
    interactive_histogram,
    n_bars__edit_type="knob",
    n_bars__range=(1, 300),
    mu__edit_type="input",
    mu__range=(-5, 5),
    sigma__edit_type="drag",
    sigma__range=(0.1, 5),
    average__edit_type="slider_float_any_range",
    nb_data__edit_type="slider",
    nb_data__range=(100, 1_000_000),
    nb_data__slider_logarithmic=True,
    nb_data__slider_no_input=True,
)


def main() -> None:
    """Main function to run the Fiatlight application with interactive matplotlib figures."""
    import fiatlight

    # Create a graph to manage functions and their links
    graph = fiatlight.FunctionsGraph()
    graph.add_function(interactive_sine_wave)
    graph.add_function(gaussian_heatmap)
    graph.add_function(data_smoothing)
    graph.add_function(interactive_histogram)
    graph.add_function(time_seconds)
    graph.add_function(phase_from_time_seconds)
    graph.add_link("time_seconds", "phase_from_time_seconds", "time_")
    graph.add_link("phase_from_time_seconds", "interactive_sine_wave", "phase")
    fiatlight.run(graph, app_name="figure_with_gui_demo")


if __name__ == "__main__":
    main()
