fiat_dataframe: pandas DataFrame explorer

Fiatlight provides DataFrameWithGui, a viewer for pandas dataframes that allows to sort, and visualize the data. Composed with the advanced GUI creation capabilities of fiatlight, it can also filter data.

Example

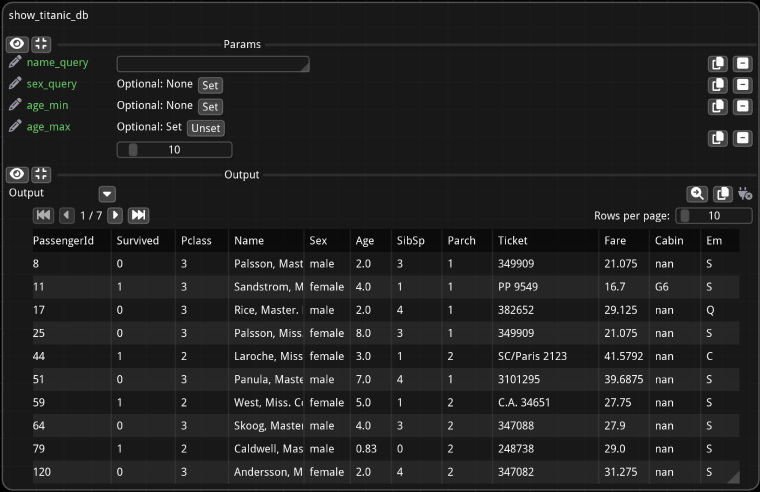

from fiatlight.fiat_kits.fiat_dataframe import dataframe_with_gui_demo_titanic
dataframe_with_gui_demo_titanic.main()

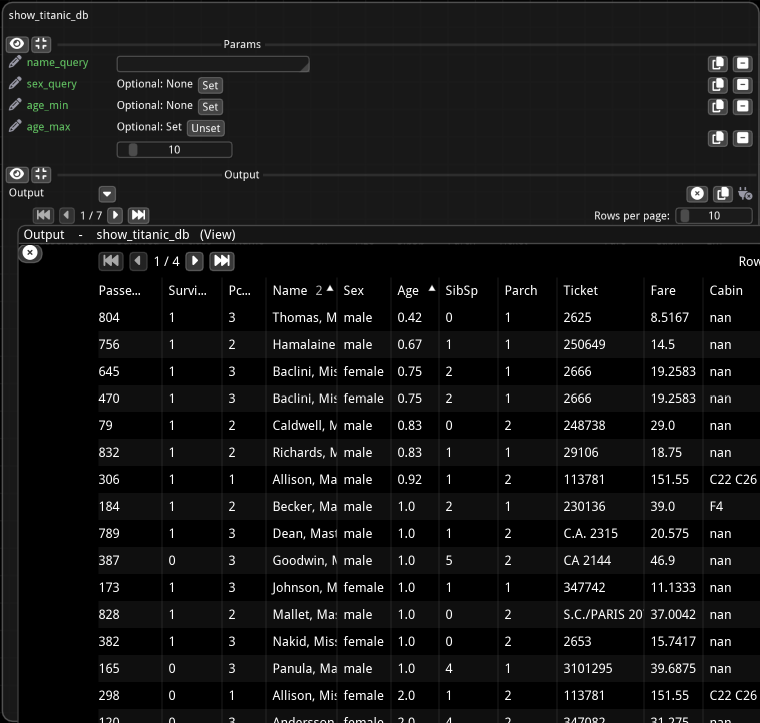

By clicking on the magnifier button on top of the dataframe, you can open it in a popup where sorting options are available. Click on one column (or shift-click on multiple columns) to sort the data.

dataframe_with_gui_demo_titanic.main()

Fiat attributes available for DataFrameWithGui

Here is a list of all the possible customizations options:

%%bash
fiatlight gui DataFrameWithGui

GUI type: DataFrameWithGui
===========================
  A class to present a pandas DataFrame in the GUI, with pagination and other features. Open in a pop-up for more features

  Available custom attributes for DataFrameWithGui:
  --------------------------------------------------------------------------------
  +------------------------+---------------------+--------------+-----------------------------------------------+
  | Name                   | Type                | Default      | Explanation                                   |
  +========================+=====================+==============+===============================================+
  | widget_size_em         | tuple[float, float] | (50.0, 15.0) | Widget size in em units                       |
  +------------------------+---------------------+--------------+-----------------------------------------------+
  | column_widths_em       | dict                | {}           | Dictionary to specify custom widths for       |
  |                        |                     |              | individual columns, identified by column name |
  +------------------------+---------------------+--------------+-----------------------------------------------+
  | rows_per_page_node     | int                 | 10           | Number of rows to display per page (when      |
  |                        |                     |              | displayed in a function node)                 |
  +------------------------+---------------------+--------------+-----------------------------------------------+
  | rows_per_page_classic  | int                 | 20           | Number of rows to display per page (when      |
  |                        |                     |              | displayed in a pop-up)                        |
  +------------------------+---------------------+--------------+-----------------------------------------------+
  | current_page_start_idx | int                 | 0            | Index of the first row on the current page,   |
  |                        |                     |              | used for pagination                           |
  +------------------------+---------------------+--------------+-----------------------------------------------+

  Available custom attributes for AnyDataWithGui Generic attributes:
  --------------------------------------------------------------------------------
  +----------------+--------+---------------------+------------------------------------------------+
  | Name           | Type   | Default             | Explanation                                    |
  +================+========+=====================+================================================+
  |                |        |                     | **Generic attributes**                         |
  +----------------+--------+---------------------+------------------------------------------------+
  | validate_value | object | None                | Function to validate a parameter value (should |
  |                |        |                     | return DataValidationResult.ok() .error()      |
  +----------------+--------+---------------------+------------------------------------------------+
  | label          | str    |                     | A label for the parameter. If empty, the       |
  |                |        |                     | function parameter name is used                |
  +----------------+--------+---------------------+------------------------------------------------+
  | tooltip        | str    |                     | An optional tooltip to be displayed            |
  +----------------+--------+---------------------+------------------------------------------------+
  | label_color    | ImVec4 | ImVec4(0.000000,    | The color of the label (will use the default   |
  |                |        | 0.000000, 0.000000, | text color if not provided)                    |
  |                |        | 1.000000)           |                                                |
  +----------------+--------+---------------------+------------------------------------------------+

Code to test this GUI type:
----------------------------
```python
import typing
import fiatlight

@fiatlight.with_fiat_attributes(
    dataframe_param__widget_size_em = (50.0, 15.0),
    dataframe_param__column_widths_em = {},
    dataframe_param__rows_per_page_node = 10,
    dataframe_param__rows_per_page_classic = 20,
    dataframe_param__current_page_start_idx = 0,
    #  Generic attributes
    dataframe_param__validate_value = None,
    dataframe_param__label = "",
    dataframe_param__tooltip = "",
    dataframe_param__label_color = ImVec4(0.000000, 0.000000, 0.000000, 1.000000))
def f(dataframe_param: pandas.core.frame.DataFrame) -> pandas.core.frame.DataFrame:
    return dataframe_param

fiatlight.run(f)
```

Source code for the example

import fiatlight
from fiatlight.fiat_notebook import look_at_code  # noqa
%look_at_python_file fiat_kits/fiat_dataframe/dataframe_with_gui_demo_titanic.py

import fiatlight as fl
import pandas as pd
from enum import Enum


def make_titanic_df() -> pd.DataFrame:
    # Here, we provide an example data frame to the user,
    # using the Titanic dataset from the Data Science Dojo repository.
    # (widely used in data science tutorials)
    url = "https://raw.githubusercontent.com/datasciencedojo/datasets/master/titanic.csv"
    try:
        df = pd.read_csv(url)
    except Exception as e:
        print(f"Error loading sample dataset: {e}")
        df = pd.DataFrame()  # Return an empty DataFrame in case of failure
    return df


class Sex(Enum):
    Man = "male"
    Woman = "female"


@fl.with_fiat_attributes(
    # define the custom attributes for the function parameters
    age_min__range=(0, 100),
    age_max__range=(0, 100),
    # define custom attributes for the function output
    # (i.e. the presentation options for the DataFrame)
    return__widget_size_em=(55.0, 15.0),
    return__rows_per_page_node=10,
    return__rows_per_page_popup=20,
    return__column_widths_em={"Name": 5},
)
def show_titanic_db(
    name_query: str = "", sex_query: Sex | None = None, age_min: int | None = None, age_max: int | None = None
) -> pd.DataFrame:
    dataframe = make_titanic_df()
    if dataframe.empty:
        return dataframe

    # filter dataframe
    if name_query:
        dataframe = dataframe[dataframe["Name"].str.contains(name_query, case=False)]
    if sex_query:
        dataframe = dataframe[dataframe["Sex"] == sex_query.value]
    if age_min is not None:
        dataframe = dataframe[dataframe["Age"] >= age_min]
    if age_max is not None:
        dataframe = dataframe[dataframe["Age"] <= age_max]

    return dataframe


def main() -> None:
    fl.run(show_titanic_db, app_name="dataframe_with_gui_demo_titanic")


if __name__ == "__main__":
    main()
