Widgets - Dear ImGui Bundle

Dear ImGui Bundle includes a variety of additional widgets beyond the standard ImGui set.

Full Demo¶

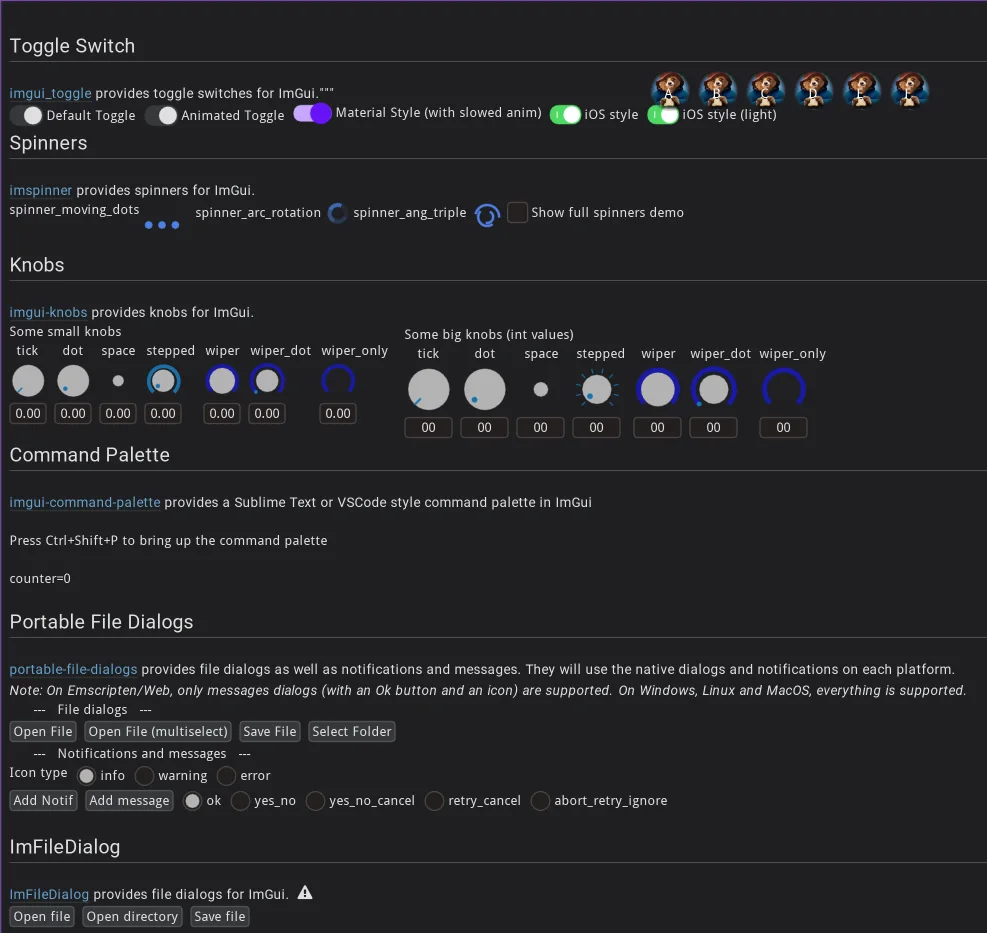

Widgets demo showcasing knobs, toggles, spinners, coolbar, and more.

Try online | Python | C++

imgui-knobs - Rotary Knobs¶

Introduction¶

imgui-knobs adds rotary knob widgets similar to those found in audio software.

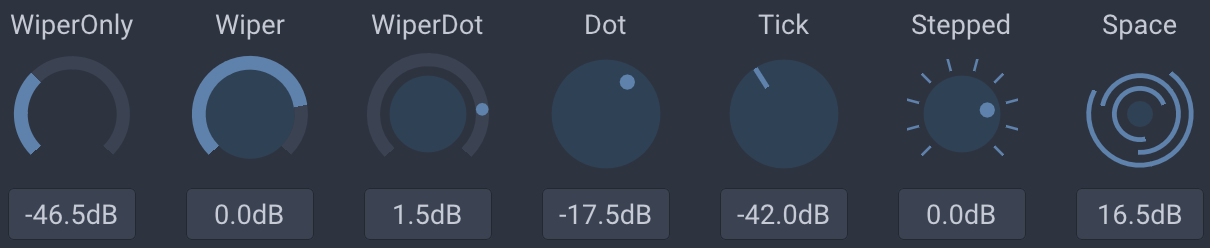

imgui-knobs: rotary knobs with multiple visual styles.

Knob variants: tick, dot, wiper, wiper_only, stepped

Quick Example¶

Python

C++

from imgui_bundle import imgui_knobs, immapp

value = 50.0

def gui():
    global value
    changed, value = imgui_knobs.knob("Volume", value, 0.0, 100.0)

immapp.run(gui)

#include "immapp/immapp.h"
#include "imgui-knobs/imgui-knobs.h"

float value = 50.0f;

void gui() {
    ImGuiKnobs::Knob("Volume", &value, 0.0f, 100.0f);
}

int main() {
    ImmApp::Run(gui, "Knobs Demo", {400, 300});
    return 0;
}

Documented APIs¶

Python: imgui_knobs.pyi
C++: imgui-knobs.h

imgui_toggle - Toggle Switches¶

Introduction¶

imgui_toggle provides iOS-style toggle switches.

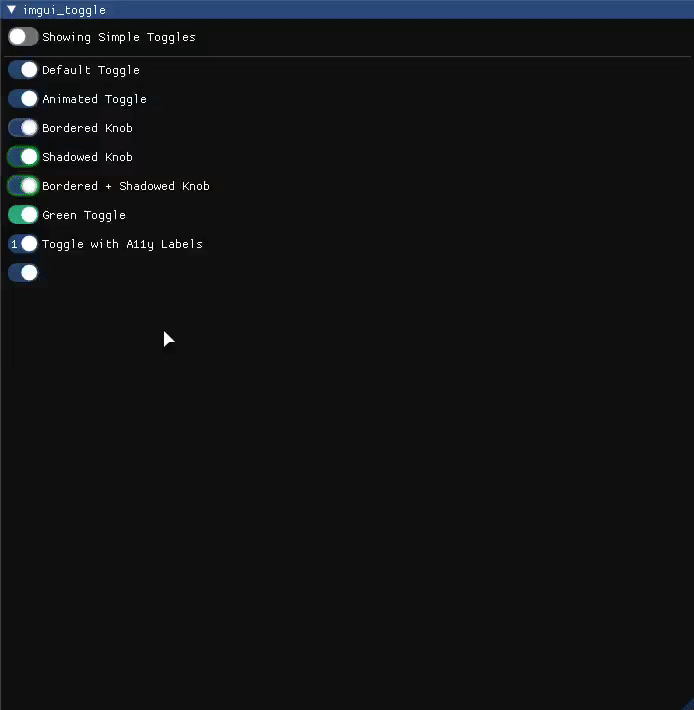

imgui_toggle: iOS-style toggle switches with animations.

Quick Example¶

Python

C++

from imgui_bundle import imgui_toggle, immapp

enabled = False

def gui():
    global enabled
    changed, enabled = imgui_toggle.toggle("Enable feature", enabled)

immapp.run(gui)

#include "immapp/immapp.h"
#include "imgui_toggle/imgui_toggle.h"

bool enabled = false;

void gui() {
    ImGui::Toggle("Enable feature", &enabled);
}

int main() {
    ImmApp::Run(gui, "Toggle Demo", {400, 300});
    return 0;
}

Documented APIs¶

Python: imgui_toggle.pyi
C++: imgui_toggle.h

imspinner - Loading Spinners¶

Introduction¶

imspinner provides a large collection of animated loading spinners.

Quick Example¶

Python

C++

from imgui_bundle import imspinner, imgui, immapp

def gui():
    imspinner.spinner_ang_triple(
        "spinner",
        radius1=16, radius2=13, radius3=10,
        thickness=3,
        c1=imgui.ImColor(255, 255, 255),
        c2=imgui.ImColor(255, 100, 100),
        c3=imgui.ImColor(100, 100, 255)
    )

immapp.run(gui)

#include "immapp/immapp.h"
#include "imspinner/imspinner.h"

void gui() {
    ImSpinner::SpinnerAngTriple(
        "spinner",
        16, 13, 10,  // radii
        3,           // thickness
        ImColor(255, 255, 255),
        ImColor(255, 100, 100),
        ImColor(100, 100, 255)
    );
}

int main() {
    ImmApp::Run(gui, "Spinner Demo", {400, 300});
    return 0;
}

Documented APIs¶

Python: imspinner.pyi
C++: imspinner.h

ImCoolBar - macOS-style Dock Bar¶

Introduction¶

ImCoolBar creates a macOS-style dock bar with magnification effect on hover.

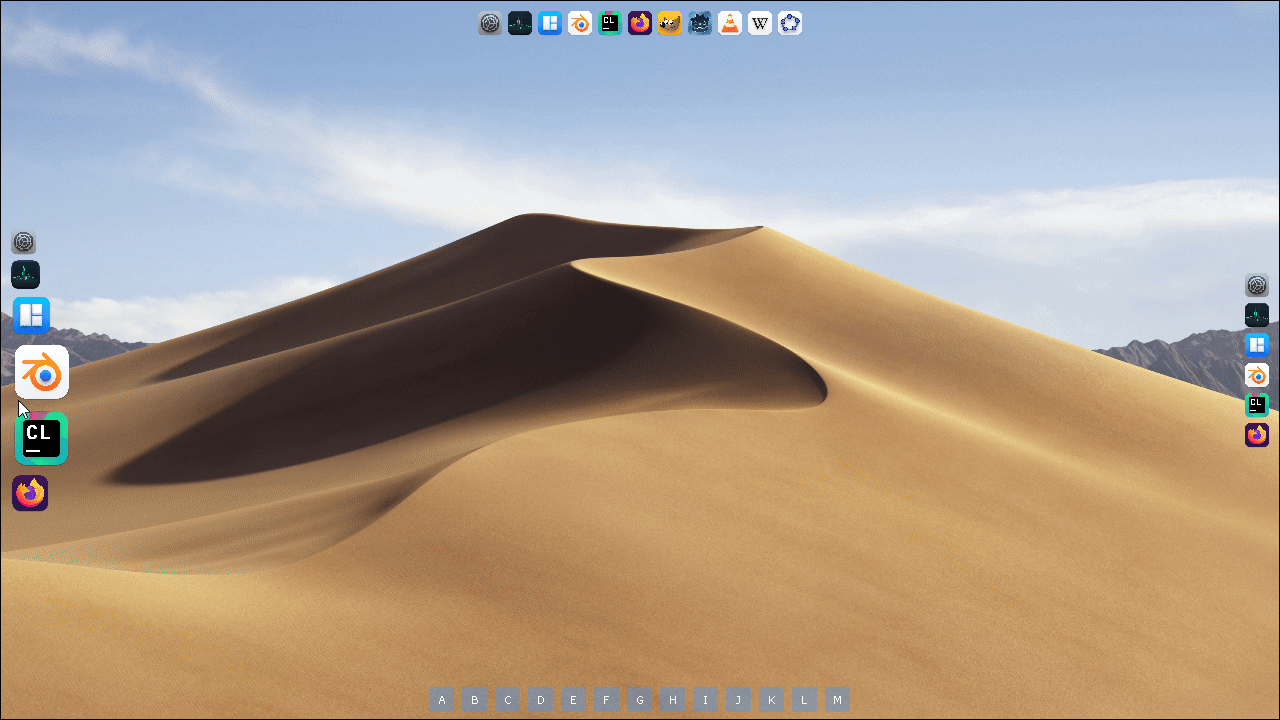

ImCoolBar: macOS-style dock bar with magnification effect.

Documented APIs¶

Python: im_cool_bar.pyi
C++: ImCoolbar.h

imgui-command-palette - VSCode-style Command Palette¶

Introduction¶

imgui-command-palette adds a Sublime Text / VSCode style command palette.

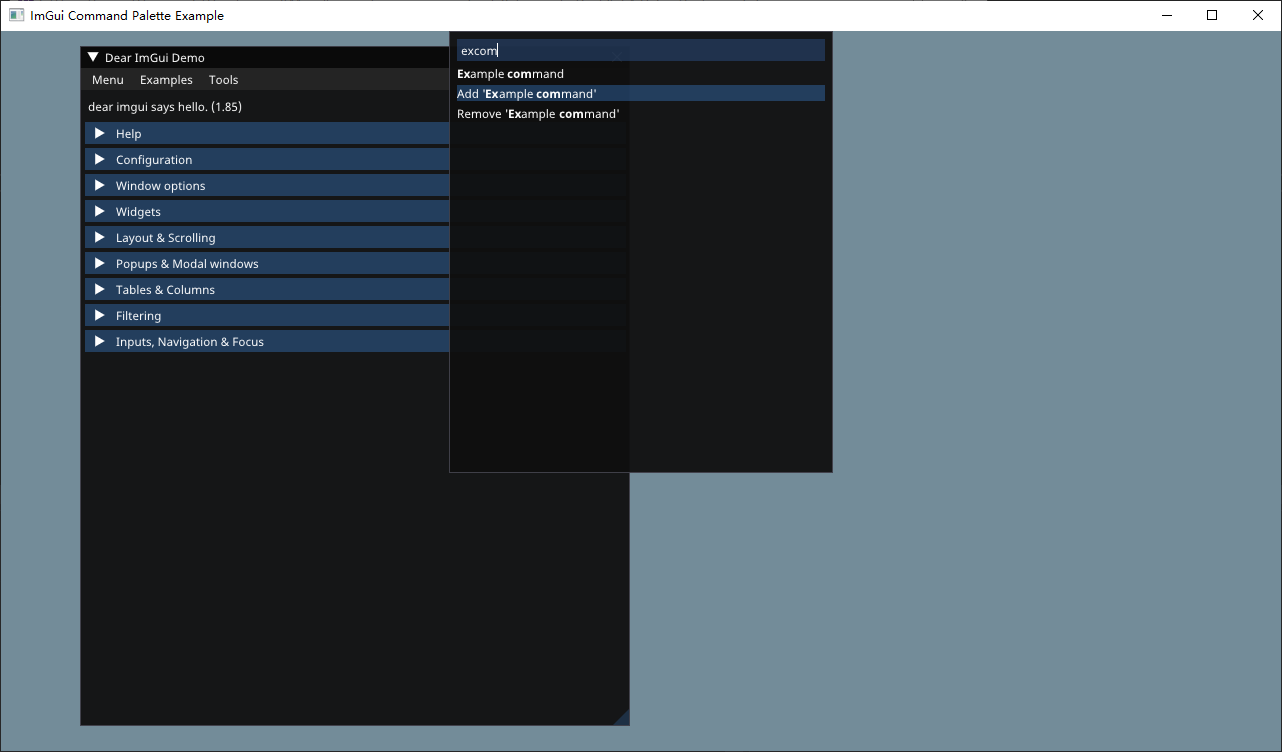

imgui-command-palette: VSCode-style command palette.

Full Demo¶

Try online | Python | C++

Documented APIs¶

Python: imgui_command_palette.pyi
C++: imcmd_command_palette.h

File Dialogs¶

Dear ImGui Bundle provides two file dialog libraries.

portable-file-dialogs¶

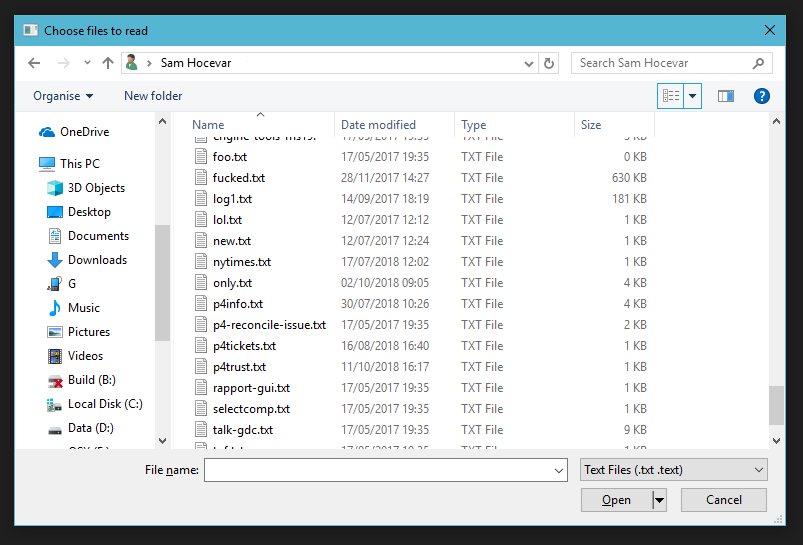

portable-file-dialogs uses native OS dialogs for file selection, notifications, and messages.

Quick Example¶

Python

C++

from imgui_bundle import portable_file_dialogs as pfd

# Open file dialog (native OS)
selection = pfd.open_file("Select a file", ".", ["Image Files", "*.png *.jpg"])

# Message box
pfd.message("Title", "Message content", pfd.choice.ok, pfd.icon.info)

#include "portable-file-dialogs/portable-file-dialogs.h"

// Open file dialog (native OS)
auto selection = pfd::open_file("Select a file", ".",
    {"Image Files", "*.png *.jpg"}).result();

// Message box
pfd::message("Title", "Message content", pfd::choice::ok, pfd::icon::info);

Documented APIs¶

Python: portable_file_dialogs.pyi
C++: portable-file-dialogs.h

ImFileDialog¶

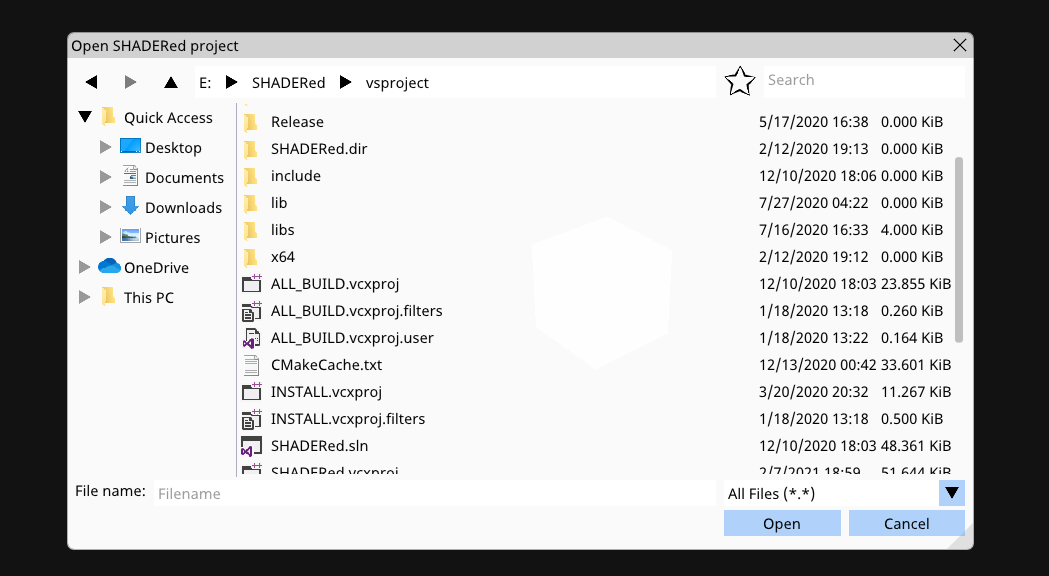

ImFileDialog is a file dialog library with a modern look.

Quick Example¶

Python

C++

from imgui_bundle import im_file_dialog as ifd, imgui, immapp

def gui():
    if imgui.button("Open File"):
        ifd.FileDialog.instance().open(
            "OpenFile", "Open a file", "Image files (*.png;*.jpg){.png,.jpg},.*"
        )

    if ifd.FileDialog.instance().is_done("OpenFile"):
        if ifd.FileDialog.instance().has_result():
            result = ifd.FileDialog.instance().get_result()
            print(f"Selected: {result}")
        ifd.FileDialog.instance().close()

immapp.run(gui)

#include "immapp/immapp.h"
#include "ImFileDialog/ImFileDialog.h"

void gui() {
    if (ImGui::Button("Open File")) {
        ifd::FileDialog::Instance().Open(
            "OpenFile", "Open a file", "Image files (*.png;*.jpg){.png,.jpg},.*"
        );
    }

    if (ifd::FileDialog::Instance().IsDone("OpenFile")) {
        if (ifd::FileDialog::Instance().HasResult()) {
            auto result = ifd::FileDialog::Instance().GetResult();
            printf("Selected: %s\n", result.string().c_str());
        }
        ifd::FileDialog::Instance().Close();
    }
}

int main() {
    ImmApp::Run(gui, "File Dialog", {800, 600});
    return 0;
}

Documented APIs¶

Python: im_file_dialog.pyi
C++: ImFileDialog.h
