Dear ImGui Bundle includes specialized tools for 3D editing and visual programming.

ImGuizmo - 3D Gizmos¶

Introduction¶

ImGuizmo provides immediate mode 3D gizmos for scene editing: translate, rotate, and scale manipulators similar to those found in 3D modeling software.

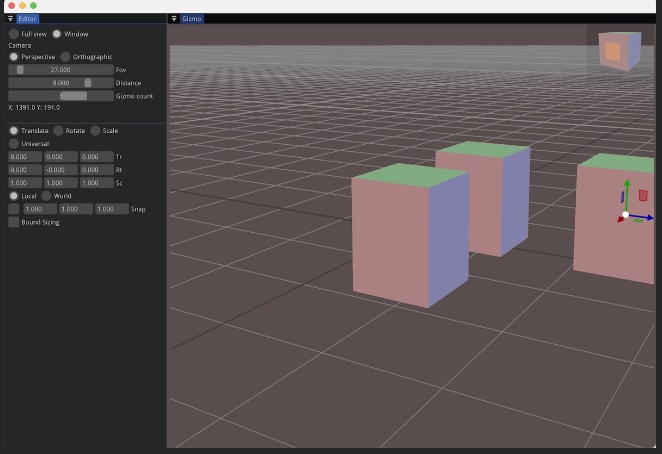

ImGuizmo: 3D gizmos for translation, rotation, and scale.

Features:

Translation, rotation, scale gizmos
Local and world coordinate modes
View cube for camera orientation
Snap to grid support

Full Demo¶

Try online | Python | C++

Documented APIs¶

Python: imguizmo.pyi
C++: ImGuizmo.h

imgui-node-editor - Visual Node Graphs¶

Introduction¶

imgui-node-editor is a node editor built using Dear ImGui. Create visual programming interfaces, data flow graphs, etc.

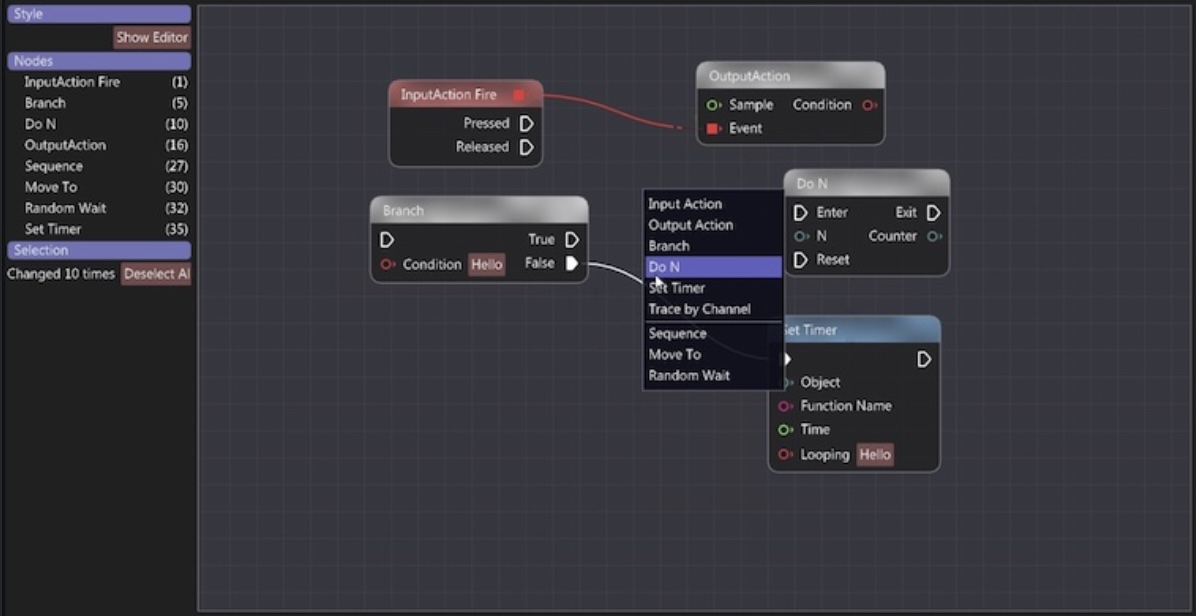

imgui-node-editor: visual node graphs for data flow and shader editing.

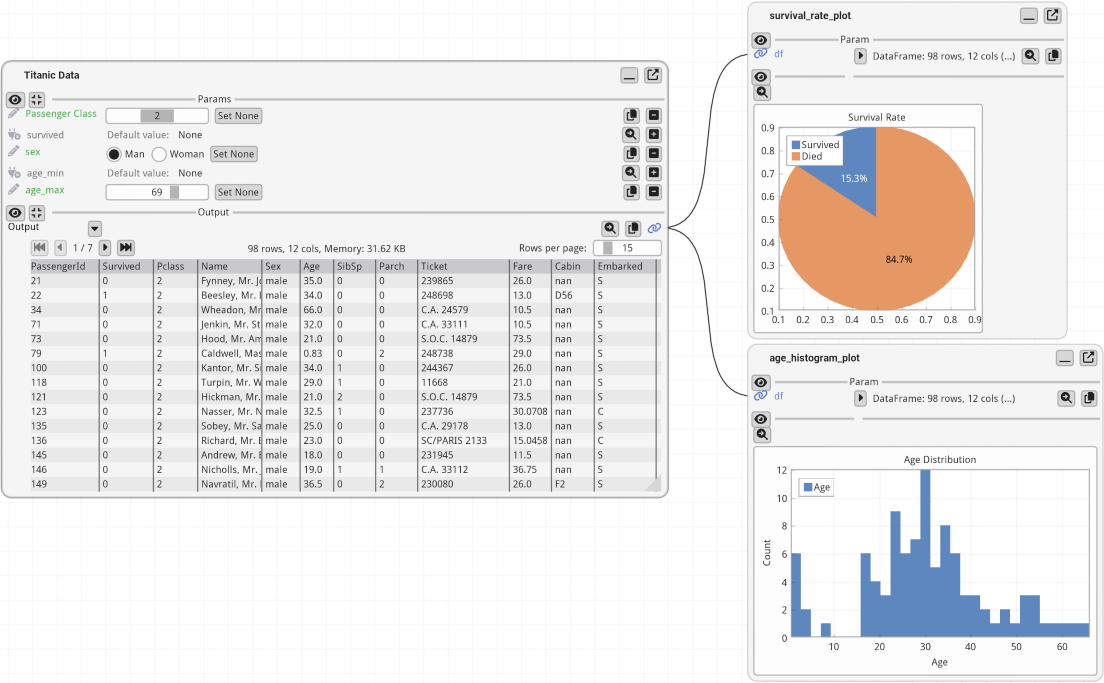

Note: Fiatlight, a library built on top of Dear ImGui Bundle uses imgui-node-editor intensively. It provides an automatic UI generation for functions and structured data.

Full Demo¶

Try online - A launcher with several demos:

Demo	Python	C++
Basic Demo	demo_node_editor_basic.py	demo_node_editor_basic.cpp
Romeo and Juliet	demo_romeo_and_juliet.py	demo_romeo_and_juliet.cpp

Documented APIs¶

Python: imgui_node_editor.pyi
C++: imgui_node_editor.h

NanoVG - 2D Vector Graphics¶

Introduction¶

NanoVG is an antialiased 2D vector drawing library on top of OpenGL. Use it for custom drawing, charts, diagrams, or any vector graphics needs.

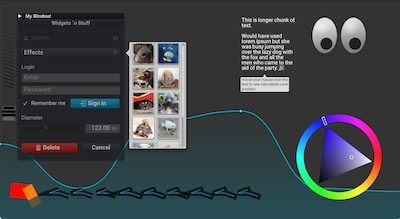

NanoVG: antialiased 2D vector graphics with paths, shapes, and text.

Features:

Antialiased rendering
Paths, shapes, gradients
Text rendering with font support
Scissoring and clipping

Full Demo¶

Try online - A launcher with two demos:

Demo	Python	C++
Full Demo	demo_nanovg_full.py	demo_nanovg_full.cpp
Simple Demo	demo_nanovg_heart.py	demo_nanovg_heart.cpp

Documented APIs¶

Python: nanovg.pyi
C++: nanovg.h
