Custom types registration

import fiatlight as fl
import numpy as np
from imgui_bundle import imgui

Points2D = fl.documented_newtype(
    "Points2D",
    np.ndarray,
    "List of 2D pixel coordinates as an (N, 2) int32 ndarray.",
)


def _present(points: Points2D) -> None:
    imgui.text(f"{int(points.shape[0])} point(s)")


fl.register_callbacks(
    Points2D,
    present=_present,
    present_str=lambda p: f"Points2D[n={int(p.shape[0])}]",
    default=lambda: Points2D(np.empty((0, 2), dtype=np.int32)),
)

class MyPoint3D:
    x: float; y: float; z: float


def _edit(p: MyPoint3D) -> tuple[bool, MyPoint3D]:
    changed_x, p.x = imgui.drag_float("X", p.x)
    changed_y, p.y = imgui.drag_float("Y", p.y)
    changed_z, p.z = imgui.drag_float("Z", p.z)
    return changed_x or changed_y or changed_z, p


fl.register_callbacks(
    MyPoint3D,
    present_str=lambda p: f"MyPoint3D({p.x:.2f}, {p.y:.2f}, {p.z:.2f})",
    default=lambda: MyPoint3D(),
    edit=_edit,
)

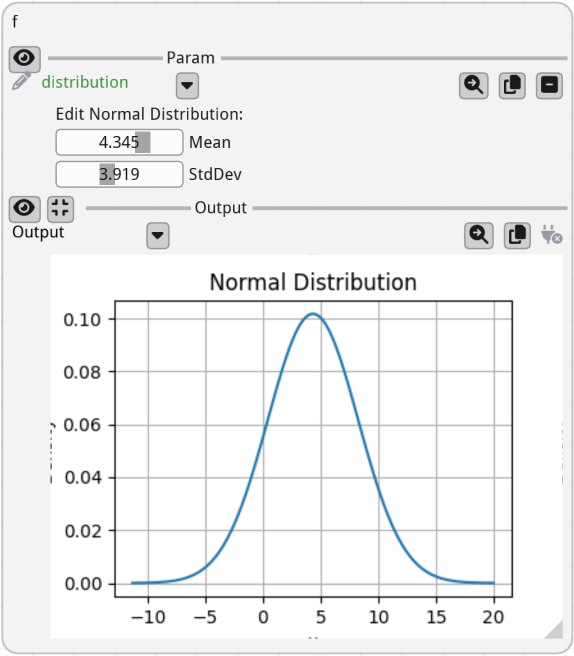

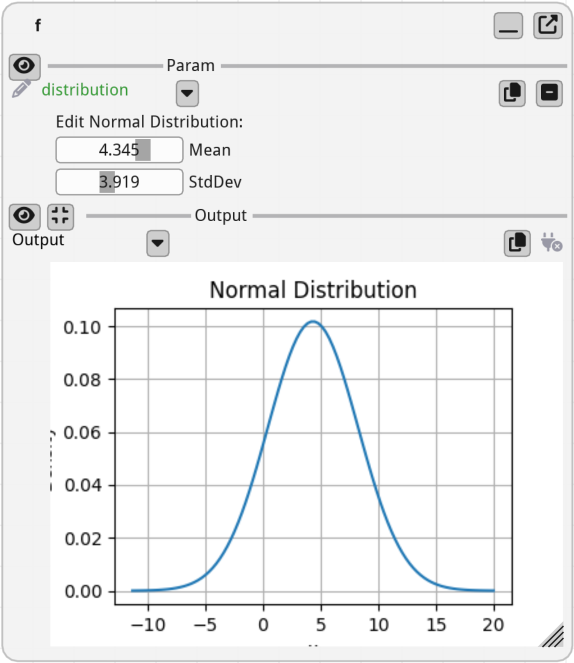

class NormalDistribution:
    mean: float = 0.0
    stddev: float = 1.0

    def __init__(self, mean: float = 0.0, stddev: float = 1.0) -> None:
        self.mean = mean
        self.stddev = stddev

import matplotlib
matplotlib.use('Agg')
import matplotlib.pyplot as plt
from matplotlib.figure import Figure

import fiatlight as fl
from imgui_bundle import imgui, imgui_fig
import numpy as np


class NormalDistributionWithGui(fl.AnyDataWithGui[NormalDistribution]):
    # Cached figure for the distribution plot
    figure: Figure | None = None
    # boolean to indicate if the figure image should be refreshed
    shall_refresh_figure_image: bool = True

    def __init__(self) -> None:
        super().__init__(NormalDistribution)

        # Edit and present callbacks
        self.callbacks.edit = self._edit_gui
        self.callbacks.present = self._present_gui
        self.callbacks.present_str = lambda value: f"Normal Distrib: Mean={value.mean:.2f}, StdDev={value.stddev:.2f}"

        # Default value provider
        self.callbacks.default_value_provider = lambda: NormalDistribution()

        # Serialization of the custom type
        # (note it would be automatic if we used a Pydantic model)
        self.callbacks.save_to_dict = lambda value: {"mean": value.mean, "stddev": value.stddev}
        self.callbacks.load_from_dict = lambda data: NormalDistribution(mean=data["mean"], stddev=data["stddev"])

        # Callback for handling changes: we need to subscribe to this event
        # in order to update the self.figure when the distribution changes
        self.callbacks.on_change = self._on_change

    def _on_change(self, value: NormalDistribution) -> None:
        # remember to close the previous figure to avoid memory leaks
        if self.figure is not None:
            plt.close(self.figure)

        # Create the figure
        x = np.linspace(value.mean - 4 * value.stddev, value.mean + 4 * value.stddev, 100)
        y = (1 / (value.stddev * np.sqrt(2 * np.pi))) * np.exp(-0.5 * ((x - value.mean) / value.stddev) ** 2)
        figure = plt.figure(figsize=(4, 3))
        plt.plot(x, y)
        plt.title("Normal Distribution")
        plt.xlabel("x")
        plt.ylabel("Density")
        plt.grid(True)

        # Cache the figure
        self.figure = figure

        # Indicate that the figure image should be refreshed
        self.shall_refresh_figure_image = True

    @staticmethod
    def _edit_gui(value: NormalDistribution) -> tuple[bool, NormalDistribution]:
        # Note: we receive the current value and return a tuple with
        # a boolean indicating if the value was modified
        modified = False
        imgui.text("Edit Normal Distribution:")
        imgui.set_next_item_width(100)
        changed, new_mean = imgui.slider_float("Mean", value.mean, -10.0, 10.0)
        if changed:
            value.mean = new_mean
            modified = True
        imgui.set_next_item_width(100)
        changed, new_stddev = imgui.slider_float("StdDev", value.stddev, 0.1, 10.0)
        if changed:
            value.stddev = new_stddev
            modified = True

        return modified, value

    def _present_gui(self, _value: NormalDistribution) -> None:
        # We do not use the value which was passed as a parameter as we use the cached Figure
        # which was updated in the _on_change callback
        imgui_fig.fig("Normal Distribution", self.figure, refresh_image=self.shall_refresh_figure_image)
        self.shall_refresh = False

fl.register_type(NormalDistribution, NormalDistributionWithGui)

def f(distribution: NormalDistribution) -> NormalDistribution:
    return distribution

fl.run(f, app_name="Normal Distribution")

import fiatlight as fl

# Step 1: Define the custom type for which we want to create a GUI
# ================================================================
# Here, our custom type is a NewType on top of float

# Option 1: using the standard library NewType (fiatlight requires you to add a __doc__ to the NewType, so we need to set it manually)
#from typing import NewType
# Length = NewType("Length", float)
# Length.__doc__ = "A length in imperial units or meters"

# or Option 2: using the helper function documented_newtype, which is more concise and automatically adds the __doc__
Length = fl.documented_newtype("Length", float, "A length in imperial units or meters")


# Step 2: Create a class to handle the custom type
# ================================================
from fiatlight import AnyDataWithGui
from fiatlight.fiat_widgets import fontawesome_6_ctx, icons_fontawesome_6
from typing import NewType, Any, Dict
from imgui_bundle import imgui, hello_imgui, imgui_ctx, ImVec4


# The specific GUI for our custom type
class LengthWithGui(AnyDataWithGui[Length]):
    use_imperial_units: bool = False

    def __init__(self) -> None:
        super().__init__(Length)
        self.callbacks.edit = self._edit  # A custom callback for editing the data
        self.callbacks.present = self._present  # A custom callback for presenting the data
        self.callbacks.present_str = self._present_str  # A custom callback for presenting the data as a short string
        self.callbacks.default_value_provider = lambda: Length(1.0)  # A custom callback for providing a default value
        # custom callback for saving the GUI options (here, we save the imperial units option)
        self.callbacks.save_gui_options_to_json = self._save_gui_options_to_json
        self.callbacks.load_gui_options_from_json = self._load_gui_options_from_json

    def _edit(self, value: Length) -> tuple[bool, Length]:
        _, self.use_imperial_units = imgui.checkbox("Imperial", self.use_imperial_units)

        format = "%.3g m" if not self.use_imperial_units else "%.3g yd"
        value_unit = value * 1.09361 if self.use_imperial_units else value
        imgui.set_next_item_width(hello_imgui.em_size(10))
        changed, new_value_unit = imgui.slider_float(
            "Value", value_unit, 1e-5, 1e11, format, imgui.SliderFlags_.logarithmic.value
        )
        if changed:
            value = Length(new_value_unit / 1.09361 if self.use_imperial_units else new_value_unit)
        return changed, value

    @staticmethod
    def _present_str(value: Length) -> str:
        return f"Length: {value:.2f} m"

    @staticmethod
    def _present(value: Length) -> None:
        with fontawesome_6_ctx():
            yd = int(Length(value * 1.09361))
            inches = int((Length(value * 1.09361 - yd) * 36))
            bananas = int(value / 0.2)
            imgui.text(f"Length: {yd} yd {inches:.0f} in (aka {bananas}")
            imgui.same_line()
            with imgui_ctx.push_style_color(imgui.Col_.text.value, ImVec4(1, 0.5, 0, 1)):
                imgui.text(icons_fontawesome_6.ICON_FA_CARROT)
            imgui.same_line()
            imgui.text(")")

    def _save_gui_options_to_json(self) -> Dict[str, Any]:
        return {"use_imperial_units": self.use_imperial_units}

    def _load_gui_options_from_json(self, json: Dict[str, Any]) -> None:
        self.use_imperial_units = json.get("use_imperial_units", False)


# Step 3: Register the custom type with its GUI
# ==============================================
from fiatlight import register_type

register_type(Length, LengthWithGui)


# Step 4: Use the custom type in a function
# =========================================
# A function that uses our custom type
def circle_perimeter(radius: Length) -> Length:
    return Length(2 * 3.14159 * radius)


# Run the function with the GUI
fiatlight.run(circle_perimeter, app_name="Circle Perimeter in banana units")
