fiat_dataframe: pandas DataFrame explorer

Fiatlight provides DataFrameWithGui, a viewer for pandas dataframes that allows to sort, and visualize the data. Composed with the advanced GUI creation capabilities of fiatlight, it can also filter data.

Example¶

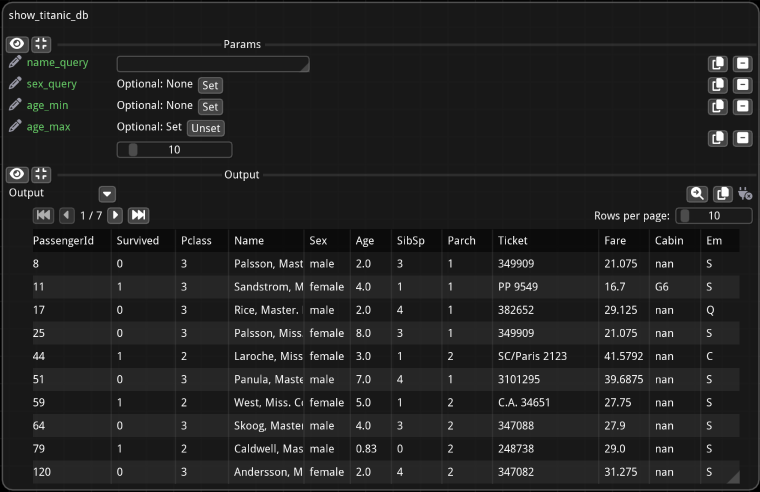

from fiatlight.fiat_kits.fiat_dataframe import dataframe_with_gui_demo_titanic
dataframe_with_gui_demo_titanic.main()

<PIL.Image.Image image mode=RGB size=760x492>

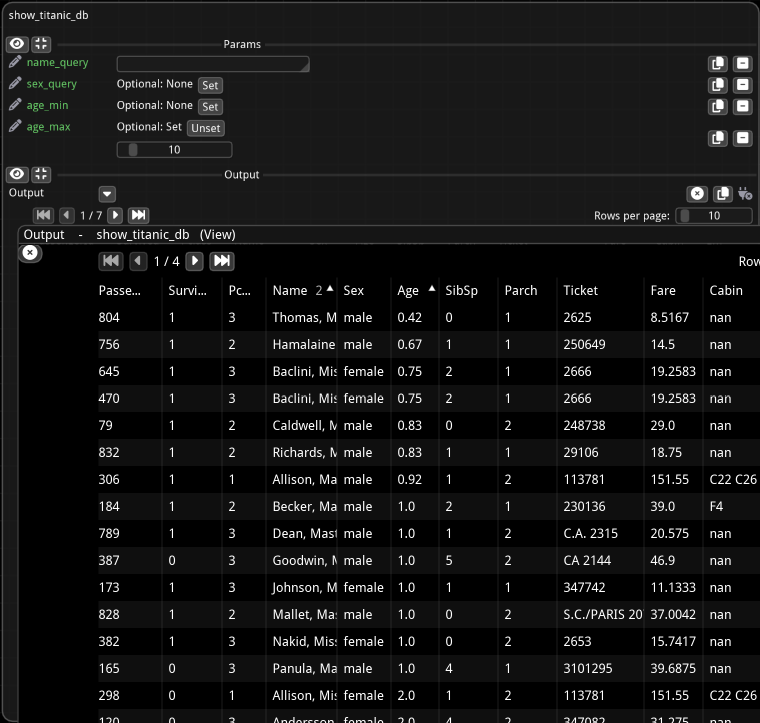

By clicking on the magnifier button on top of the dataframe, you can open it in a popup where sorting options are available. Click on one column (or shift-click on multiple columns) to sort the data.

dataframe_with_gui_demo_titanic.main()

<PIL.Image.Image image mode=RGB size=760x723>

Fiat attributes available for DataFrameWithGui¶

Here is a list of all the possible customizations options:

%%bash
fiatlight gui DataFrameWithGui

GUI type: DataFrameWithGui
===========================
  A class to present a pandas DataFrame in the GUI, with pagination and other features. Open in a pop-up for more features

  Available custom attributes for DataFrameWithGui:
  --------------------------------------------------------------------------------
  +------------------------+---------------------+--------------+-----------------------------------------------+
  | Name                   | Type                | Default      | Explanation                                   |
  +========================+=====================+==============+===============================================+
  | widget_size_em         | tuple[float, float] | (50.0, 15.0) | Widget size in em units                       |
  +------------------------+---------------------+--------------+-----------------------------------------------+
  | column_widths_em       | dict                | {}           | Dictionary to specify custom widths for       |
  |                        |                     |              | individual columns, identified by column name |
  +------------------------+---------------------+--------------+-----------------------------------------------+
  | rows_per_page_node     | int                 | 10           | Number of rows to display per page (when      |
  |                        |                     |              | displayed in a function node)                 |
  +------------------------+---------------------+--------------+-----------------------------------------------+
  | rows_per_page_classic  | int                 | 20           | Number of rows to display per page (when      |
  |                        |                     |              | displayed in a pop-up)                        |
  +------------------------+---------------------+--------------+-----------------------------------------------+
  | current_page_start_idx | int                 | 0            | Index of the first row on the current page,   |
  |                        |                     |              | used for pagination                           |
  +------------------------+---------------------+--------------+-----------------------------------------------+

  Available custom attributes for AnyDataWithGui Generic attributes:
  --------------------------------------------------------------------------------
  +----------------+--------+---------------------+------------------------------------------------+
  | Name           | Type   | Default             | Explanation                                    |
  +================+========+=====================+================================================+
  |                |        |                     | **Generic attributes**                         |
  +----------------+--------+---------------------+------------------------------------------------+
  | validate_value | object | None                | Function to validate a parameter value (should |
  |                |        |                     | return DataValidationResult.ok() .error()      |
  +----------------+--------+---------------------+------------------------------------------------+
  | label          | str    |                     | A label for the parameter. If empty, the       |
  |                |        |                     | function parameter name is used                |
  +----------------+--------+---------------------+------------------------------------------------+
  | tooltip        | str    |                     | An optional tooltip to be displayed            |
  +----------------+--------+---------------------+------------------------------------------------+
  | label_color    | ImVec4 | ImVec4(0.000000,    | The color of the label (will use the default   |
  |                |        | 0.000000, 0.000000, | text color if not provided)                    |
  |                |        | 1.000000)           |                                                |
  +----------------+--------+---------------------+------------------------------------------------+

Code to test this GUI type:
----------------------------
```python
import typing
import fiatlight

@fiatlight.with_fiat_attributes(
    dataframe_param__widget_size_em = (50.0, 15.0),
    dataframe_param__column_widths_em = {},
    dataframe_param__rows_per_page_node = 10,
    dataframe_param__rows_per_page_classic = 20,
    dataframe_param__current_page_start_idx = 0,
    #  Generic attributes
    dataframe_param__validate_value = None,
    dataframe_param__label = "",
    dataframe_param__tooltip = "",
    dataframe_param__label_color = ImVec4(0.000000, 0.000000, 0.000000, 1.000000))
def f(dataframe_param: pandas.core.frame.DataFrame) -> pandas.core.frame.DataFrame:
    return dataframe_param

fiatlight.run(f)
```

Source code for the example¶

import fiatlight
from fiatlight.fiat_notebook import look_at_code  # noqa
%look_at_python_file fiat_kits/fiat_dataframe/dataframe_with_gui_demo_titanic.py
